Hydraulic bypass quick opening butterfly valve D743P-2.5

Contact:Manager Yang
Fax:0576-82230069
Email:179386676@qq.com

Order hotline:400-6060-168 0576-82230067

Details

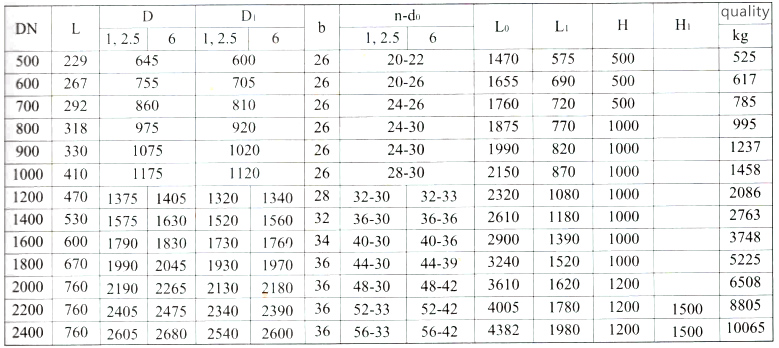

Parameter
Certificate
Samples

This valve is suitable for gas pipelines in industries such as metallurgy, petroleum, chemical, cement, and power generation. It can be used in conjunction with emergency shut-off valves to bypass quick opening valves. It can also be installed in the TRT system of a blast furnace as a speed control valve in front of a turbine (when the static blades of the turbine are not adjustable) to control the turbine speed and blast furnace top pressure.

This valve can open quickly within 1 second and can be controlled remotely. It is driven by a hydraulic servo oil cylinder and has a three eccentric structure, which opens quickly, safely and reliably, and has good sealing performance.

Nominal pressure: 0.25, 0.6MPa

Applicable media: air, gas

Applicable temperature: ≤ 250 ℃

Leakage rate: in accordance with GB/T13927-1992

Opening and closing time: 20 seconds (adjustable)

Quick opening time: ≤ 1 second

Flange standard: GB/T9115-2000
